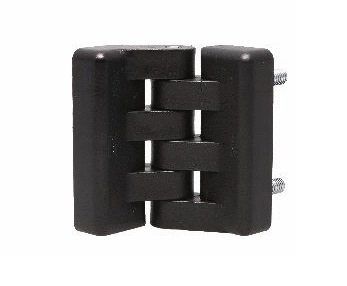

Square hinges with thread and screw, nylon
- Material: reinforced nylon
- Screw material: stainless steel
- Color: black

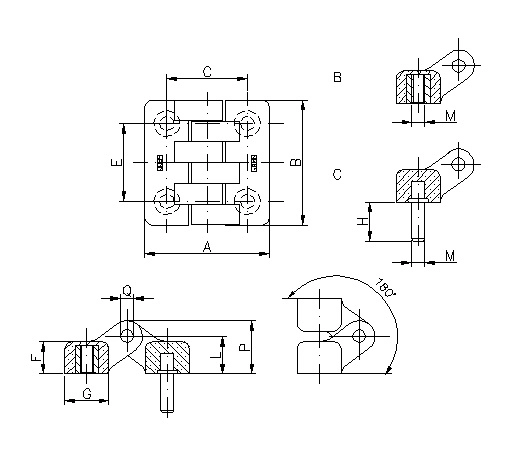

| Product name | Product code | Screw length H (mm) | Length B (mm) | Height P (mm) | Length A (mm) | Pitch E (mm) | Width G (mm) | Height L (mm) | Pitch C (mm) | Height F (mm) | Thread M | Diameter Q (mm) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Square hinges with thread and screw, nylon | 05260 | 15 | 48,1 | 20,5 | 48 | 30 | 17 | 14,5 | 31 | 12,5 | M5 | 5 |
|
| Square hinges with thread and screw, nylon | 05262 | 20 | 97,9 | 37 | 98 | 60 | 35 | 25 | 63 | 21 | M10 | 8 |
|
| Square hinges with thread and screw, nylon | 05261 | 20 | 64,9 | 25 | 65 | 40 | 24 | 17 | 40 | 14 | M6 | 6 |
|
